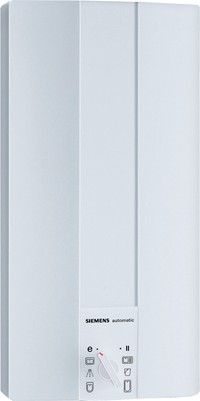

سخان مياه فوري - معدل تصرف 11.5 لتر / الدقيقة DH21100 - Flow Heater

سخان مياه فوري - معدل تصرف 11.5 لتر / الدقيقة  DH21100 - Flow Heater

Split back plate for easier assembly
Wall mounting with 25 mm variable depth central fastening screw
Simple power supply connection above and below possible
Special heating element constructed from water pipe soldered to Tubular heater
Anti-corrosion, non-sensitve to air bubbles and lime scale, suitable for all types of water
Rating selector switch e / II , 14 KW / 21 KW
Low switch on pressure of 0.8 bar
Low switch-on flow rate of 4.5 l/min
Hot water rating (38 °C/60 °C) 11.6/6.3 l/min
Maximum initial temperature up to 25 °C
Electrical connection 3~/PE, 400 V,21 kW Fuse 32 A
Cold water input with large sieve and simple possibility for turn off
protection type IP25
Complete connection set, adjustable from 90 to 125 mm
Safety temperature limiter
Power saving filter
Installation in place of devices with electrical connection at bottom with special accessories possible
Automatic flow at half power
Fixing materialWall plugs, Screws, Mounting template
Dimensions (H x W x D): 47.2 x 23.6 x 13.7 cm
Special accessories: BZ45K20, BZ45L20, BZ45U20, BZ45Z20

,



سخان مياه فوري - معدل تصرف 11.5 لتر / الدقيقة DH21100 - Flow Heater

CLICKFIX plus Assembly system saves time and money
Back plate and heating block can be separated using a handle for assembly
Back plate shortened for generous assembly space
Extremely flexible connection pipes for easy connection to water mains
Wall mounting with 25 mm variable depth central fastening screw
Suitable for Steel, Plastic pipes acc. DVGW, Copper
Easy installation in place of old systems with power supply connection above and below possible
Fast heating up of water
Operation instructions safely stored in the information flap
Fixing materialScrews, Wall plugs
Low switch-on flow rate of 4.5 l/min
Low switch on pressure of 0.8 bar
Rating selector switch e / II , 14 KW / 21 KW
Automatic flow at half power
protection type IP25
Maximum initial temperature up to 20 °C
Dimensions (H x W x D): 47.2 x 23.6 x 13.9 cm
Hot water rating (38 °C/60 °C) 11.6/6.3 l/min
Electrical connection 3~/PE, 400 V,21 kW Fuse 32 A
Special accessories: BZ45K22, BZ45L20, BZ45U20
